Description

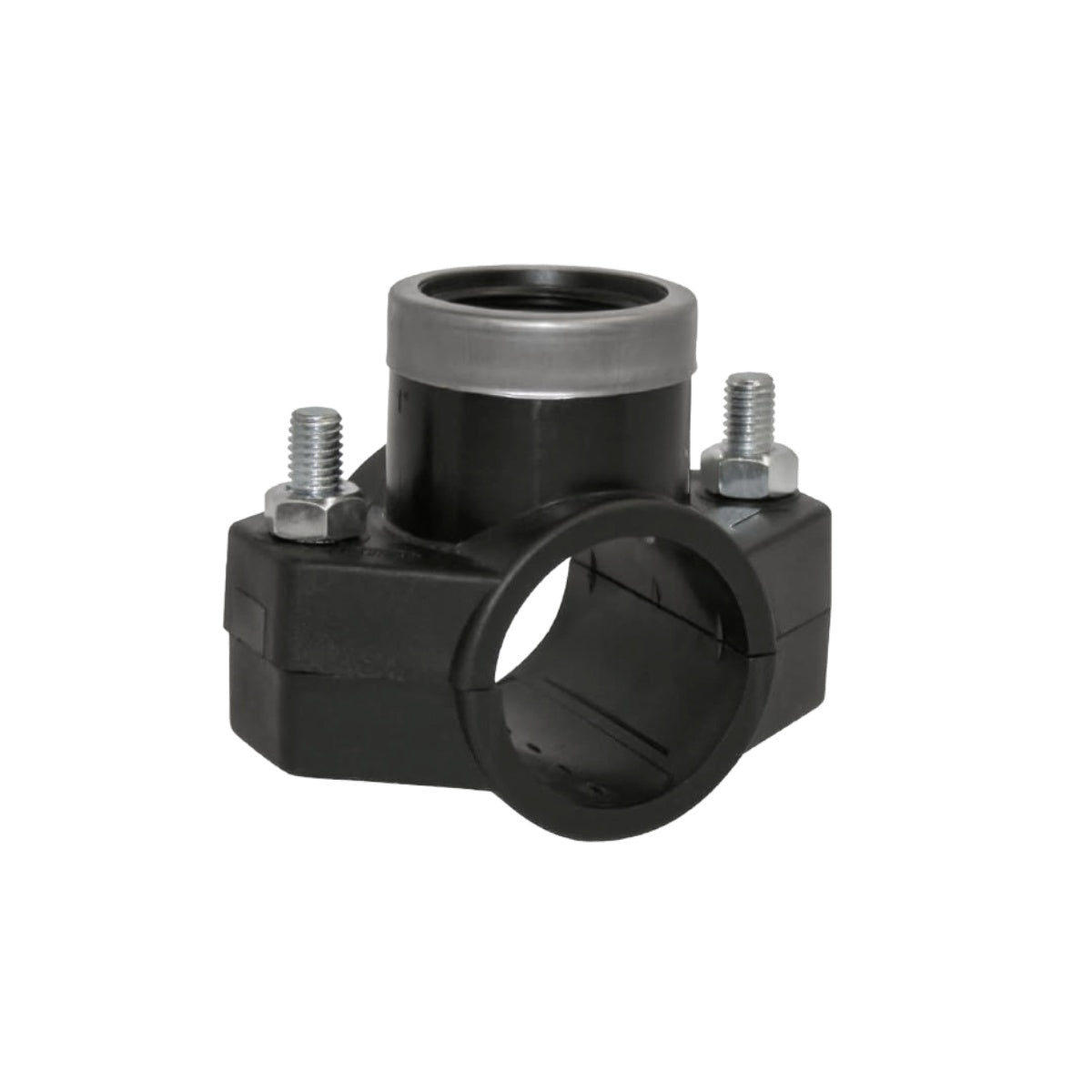

PVC Tapping Saddles – Versatile Inline Installation Fittings for Hydroponics, Irrigation & Water Treatment Systems
Choose the Perfect Fit for Your Setup – Available in Multiple Sizes & Thread Options
Our high-quality PVC tapping saddles make it quick and easy to add sensors, electrodes, injection valves, or dosing points directly onto existing PVC pipelines — without cutting, modifying, or interrupting your system. These durable saddles clamp securely around the pipe, allowing you to drill and thread in accessories for reliable inline measurement or nutrient/chemical dosing.
Ideal for hydroponic recirculating systems, nutrient film technique (NFT), deep water culture (DWC), irrigation lines, aquaponics, and water treatment applications where clean, leak-free integration is essential.
Available Variations
Select your pipe size and thread type based on your needs:
-
50 mm PVC Pipe with 1/2″ Female BSP Thread Universal option for standard accessories. Compatible with:
- Standard 12 mm electrode holders
- 1/2″ injection valves & dosing fittings Perfect for general inline pH/EC monitoring or nutrient injection.
-
40 mm PVC Pipe with 1/2″ Female BSP Thread Same universal compatibility as above, but sized for smaller 40 mm pipelines. Great for compact hydro setups or branch lines.
-
50 mm PVC Pipe with 3/4″ Female BSP Thread Specially designed for Aqua Master Tools inline electrodes (3/4″ male thread models only). Ensures a perfect, secure fit for continuous inline pH/EC monitoring with Aqua Master probes.
-
40 mm PVC Pipe with 3/4″ Female BSP Thread Tailored exclusively for Aqua Master Tools inline electrodes (3/4″ male thread). Ideal for smaller-diameter systems requiring precise Aqua Master sensor integration.
Key Benefits Across All Models
-
Tool-Free Clamp Installation — Position, bolt on, drill, and thread — minimal effort and no pipe cutting required
-
Leak-Free Performance — Durable PVC construction with secure bolting; use PTFE tape or appropriate gaskets/seals for tight connections
-
Inline Convenience — Enables real-time monitoring or dosing directly in the flow for accurate nutrient management
-
Hydro & Irrigation Optimised — Built tough for long-term use in wet, high-humidity environments
-
Easy Expansion — Add sensors, dosers, or probes anywhere along your PVC lines
Simple Installation Steps (All Models)
- Position the saddle around the clean PVC pipe in your desired location.
- Securely fasten it using the included bolts (tighten evenly for a firm grip).
- Drill through the opening in the threaded port to access the pipe interior (use appropriate drill bit size).
- Apply sealing (e.g., PTFE tape or gasket) and screw in your electrode holder, injection valve, or compatible Aqua Master electrode.
- Test for leaks and ensure proper alignment before full system pressurisation.
Important Notes
- Select the correct saddle for your exact pipe diameter (40 mm or 50 mm) — saddles are not interchangeable between sizes.
- The 3/4″ versions are exclusively for Aqua Master Tools inline electrodes with 3/4″ male threads — not compatible with other fittings or sensors.
- Always follow manufacturer guidelines for drilling and sealing to maintain system integrity and pressure ratings.
