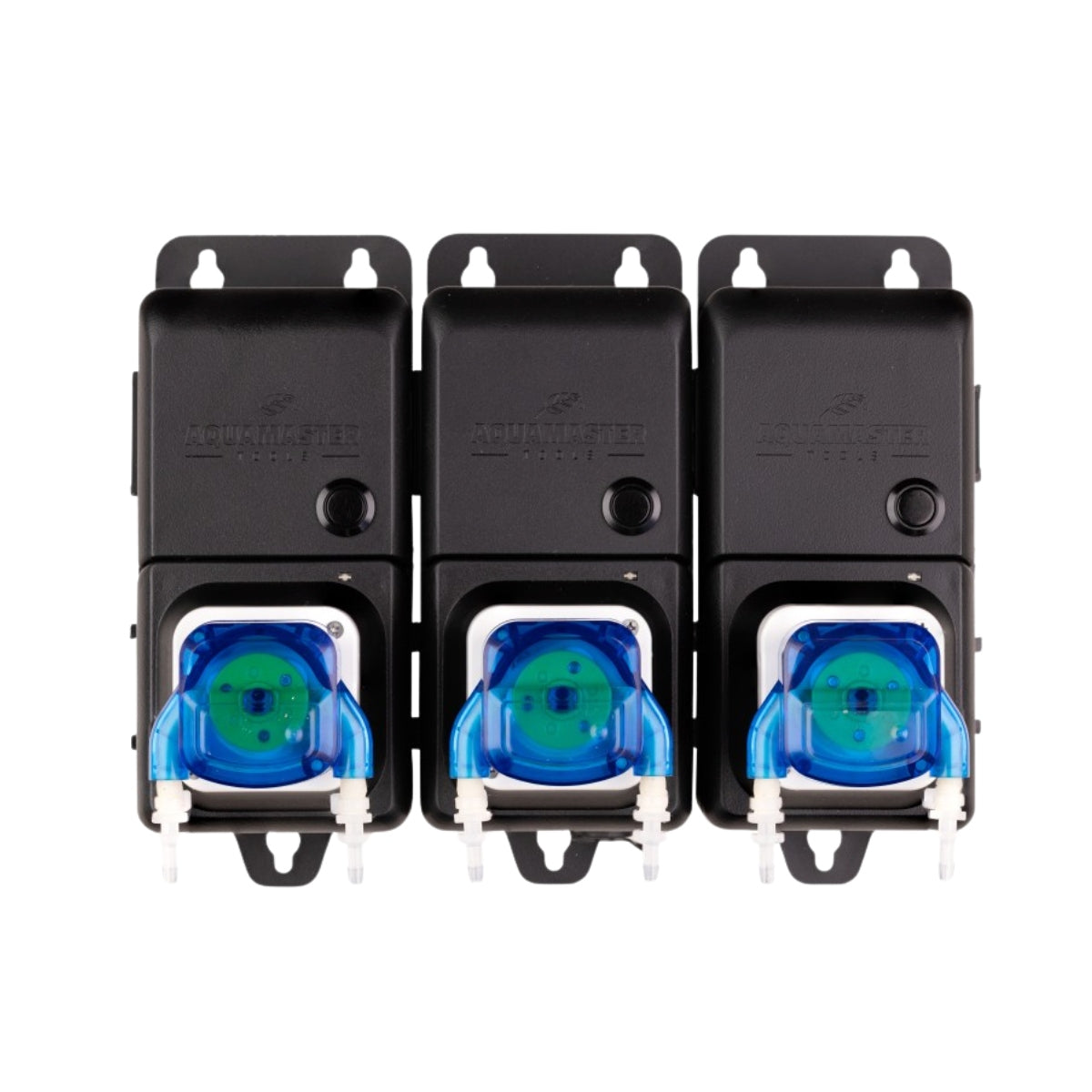

C30 pump unit 3x peristaltic pump set for nutrient dosing
The C30 is a dosing unit with three peristaltic pumps, designed for accurate nutrient dosing. It is only suitable for EC dosing and not for pH control. Each pump has a standard dosing rate of 1.5 ml per second.
Connection and Expansion Options
- The C30 connects directly to the controller via the left UTP port (bottom side).
- The right UTP port is used for expansion with a C10 (1 pump) or a C20 (2 pumps).
- Mechanical linking is done via the side slide rail, and electrical connection via the included 50 cm UTP cable.
Pump numbers in the controller menu:
- C30 only: Pump 1, 2, and 3
- C30 + C10: Pump 1 to 4
- C30 + C20: Pump 1 to 5
Maximum: 5 EC pumps + 1 pH pump per controller.
Manual Operation
Each pump has a manual priming button, ideal for filling or emptying the tubing during setup or maintenance.
What’s in the Box
- 1× C30 dosing unit (3 pumps)
- 3× Tubing (3 meters each)
- 1× UTP cable (150 cm) for controller connection
- 1× UTP cable (50 cm) for expansion
- 1× International power adapter
See the diagram below for setup and connection options.
